Length Saw

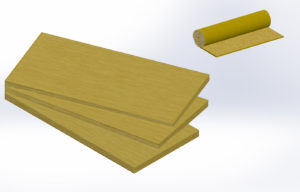

The innovative IBE length saw provides a plenitude of choices for cutting mineral wool plates.

• 6 autonomous saw heads for maximum flexibility at choosing the board width
• fully automated positioning of saws
• edge trim with two saw heads per side is possible

Standard formats

• board thickness 11-400 mm
• board length 200-1.250 mm
• manufacturing width 2.108-2.682 mm
• slitting: 1x (board width 1.000-1.200 mm), 3x (board width 525-625 mm) or 4x (board width 500 mm)

Large formats

• board thickness 20-400 mm
• board length 1.875-2.400 mm
• manufacturing width 2.108-2.682 mm
• slitting: 1x (board width 1.000-1.240 mm), 3x (board width 600-625 mm) or 4x (board width 500-510 mm)
